Beta lab furniture lab workbench including: H-Frame structure, C-Frame structure, Floor-mount structure.
：
Lab table structure
 |
C-Frame structure Advantage: 1.Extremely steady and can be loaded with 200 KGs 2.Large amount of knee and legroom, with mobile and suspended under-bench units 3.Under-bench units suspended in C-Frames can be moved across frames |
 |
H-Frame structure Advantage: 1.Higher Load bearing than C-Frame structure 2.Large amount of knee and legroom |
 |

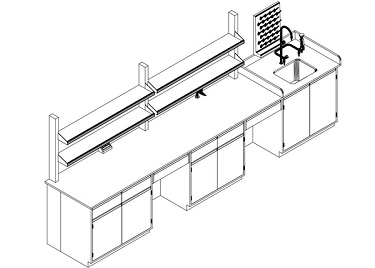

Floor-Mounted structure
Advantage:
1.Highest load bearing, up to 800 kgs
2.More Storage space |
Lab table pictures

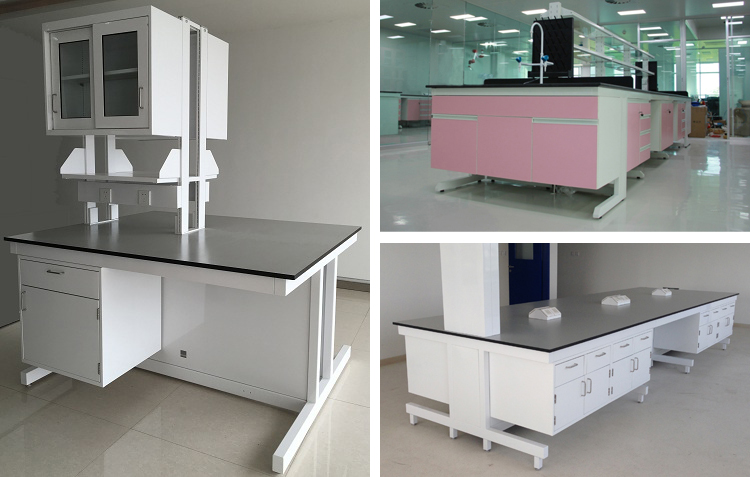

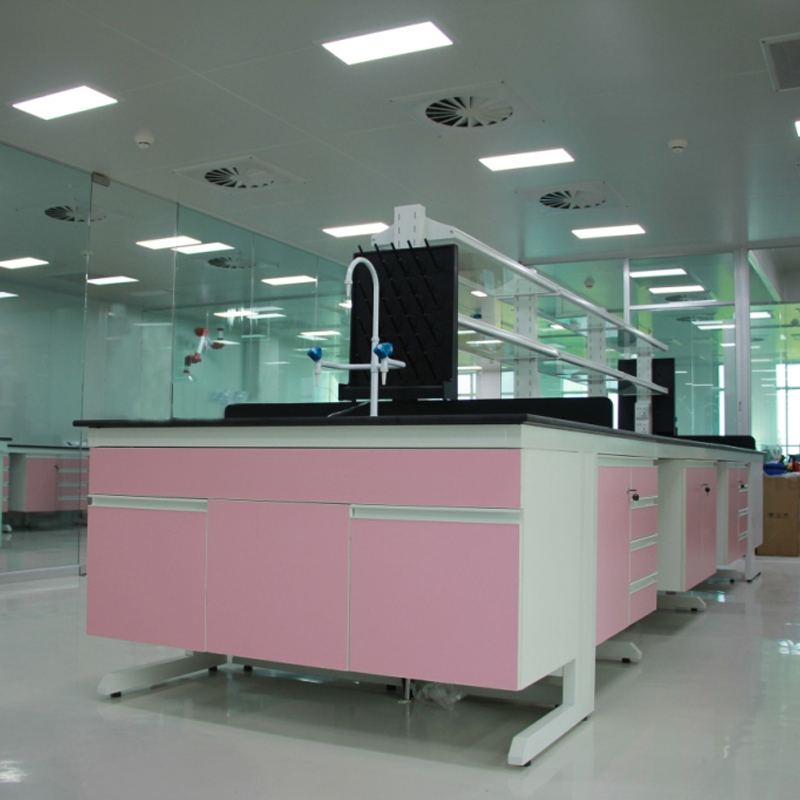

C-Frame Structure

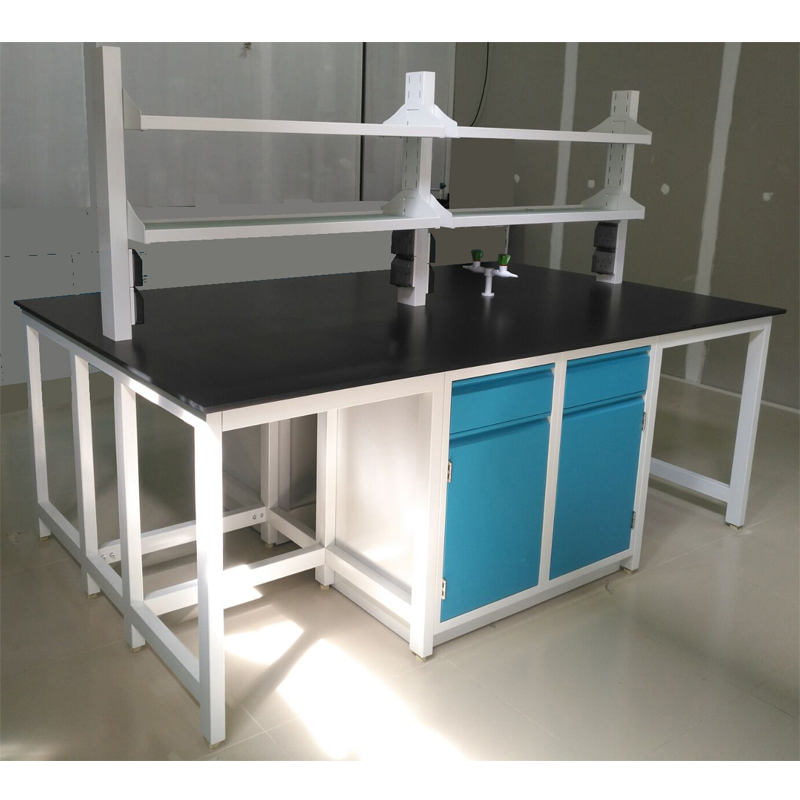

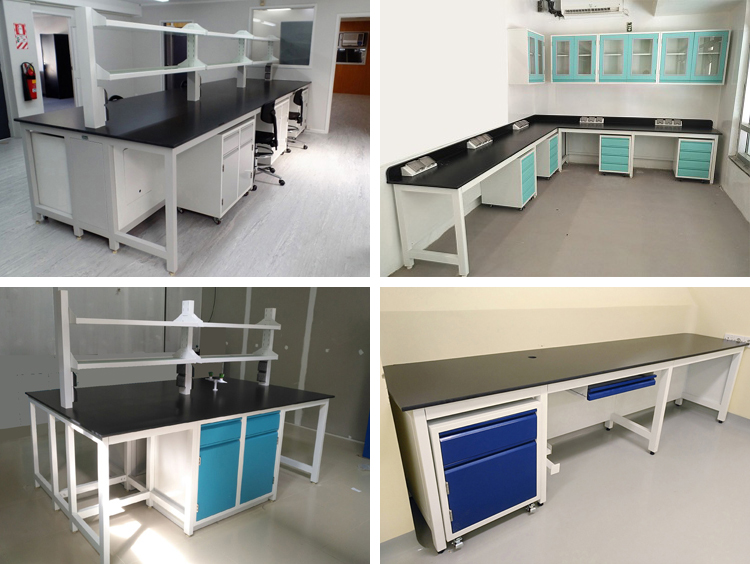

H-Frame structure

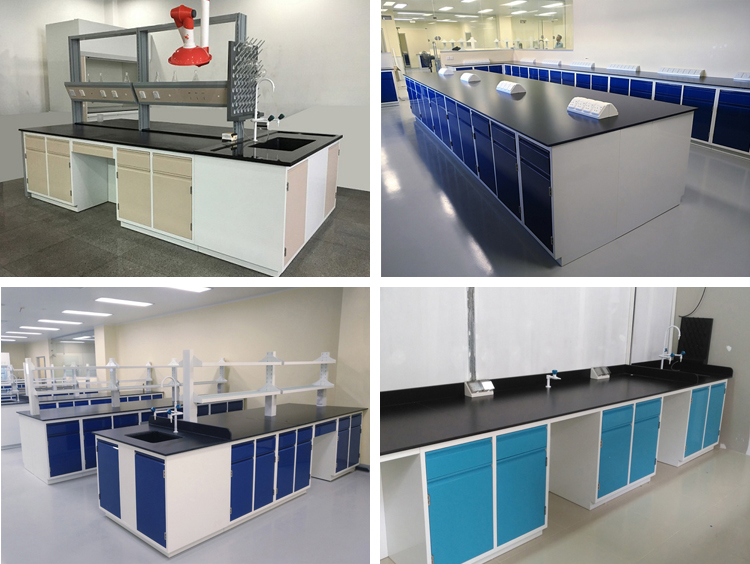

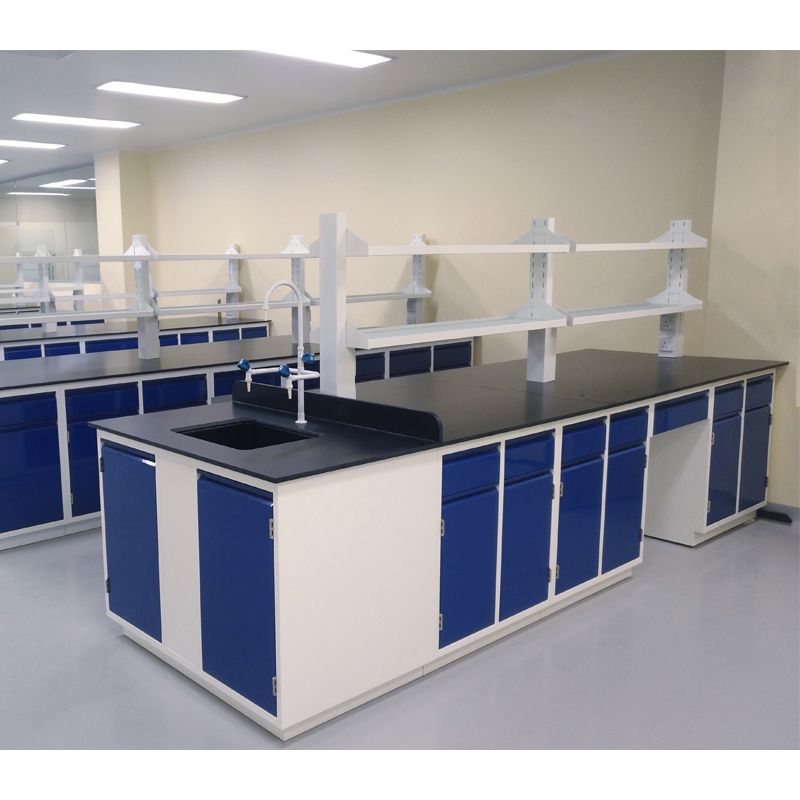

Floor mounted structure

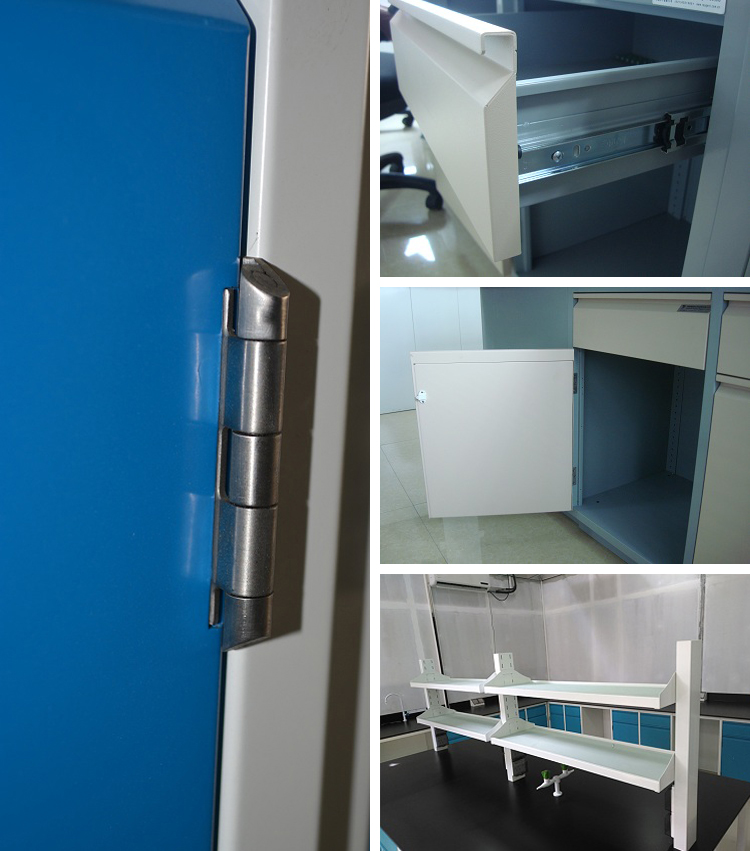

Details
Main component
| Work top (Option) |
1. Epoxide resin (16mm / 19mm / 25mm thick) 2. Phenolic Resin (12.7mm / 13mm / 16mm / 19mm / 20mm / 25mm thick) |
| Frame Structure(C&H) | Made of 1.5mm thick cold rolled steel, with chemical-resistant powder coating |
| Cabinet | Made of 1.0mm thick cold rolled steel, with chemical-resistant powder coating available in many colors |
Optional Accessories
Click here to view more fittings.
| Faucet | Different types faucets made of Brass with Epoxide resin powder coating / Stainless Steel faucet |
| Sink | PP sink / Stainless Steel Sink |
| Drip rack | PP Drip rack |
| Eye wash | Single head / double head eye wash |
| Gas cock | Different types cocks made of Brass with Epoxide resin powder coating |
| Socket | Different standard socket / spill proof socket can be install on the work top / reagent shelf / the bottom of the work bench |
| Reagent shelf | Constituted by 1.2mm thick cold rolled steel structure and 12mm thick glass layer sheet, standard size is L*400W*800H (mm)(island bench) / L*250W*800H (mm)(wall bench) , can be customized |
| Service column | Made of 1.2mm thick cold rolled steel |
More Choice
Product process

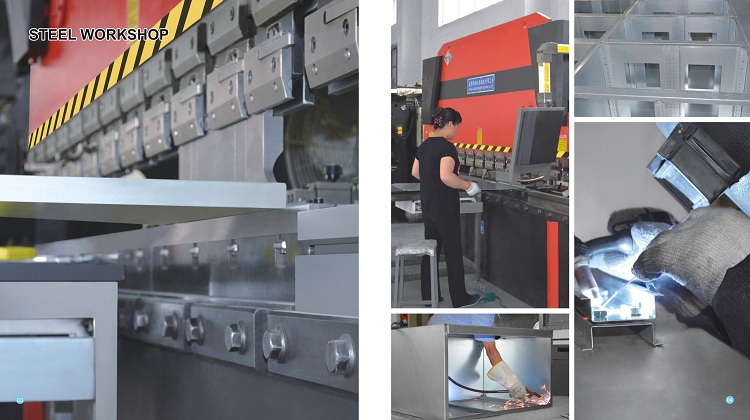

Our factory
Successful Projects
Our Clients
Q:Why choose us?
A: Our core competence is lab project management, from designing drawings, customizing furniture and fittings, to shipping pre-build modules and even sending out engineers for installation, also provide the daily maintenance of knowledge about lab furniture.
Q:How do we install the furniture?
A: 1.After receiving the goods, we will send you the installation video or installation drawing, solve any problems for you at any time.
2.For project whose total amount is good, we suggest to send our senior engineers for installation.
Q:How can we ensure the quality of your lab products?
A: Two years guarantee period since the date cargo receipt. Also can provide the samples for your reference and we are also be sure that our laboratory furniture are subject to the samples.
